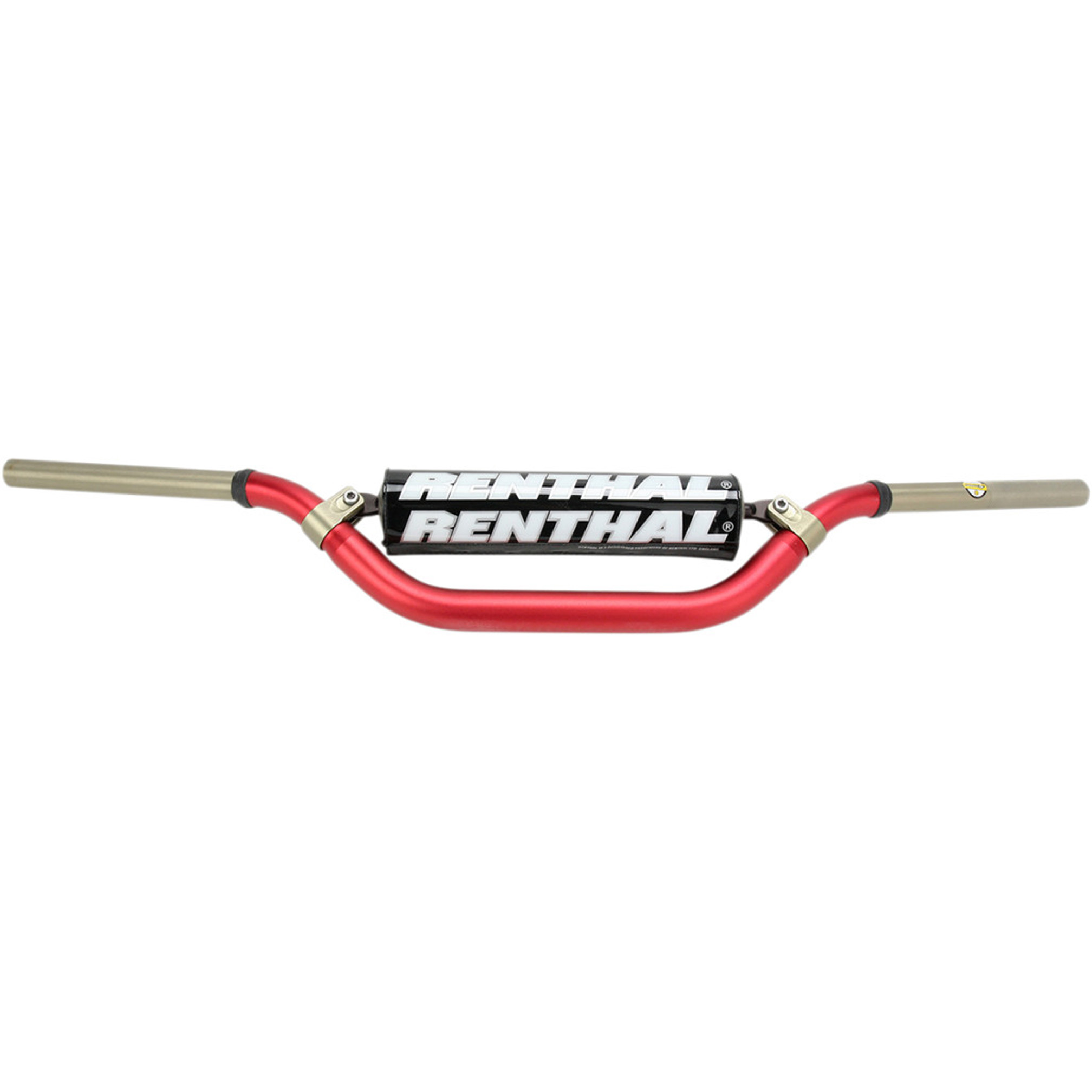

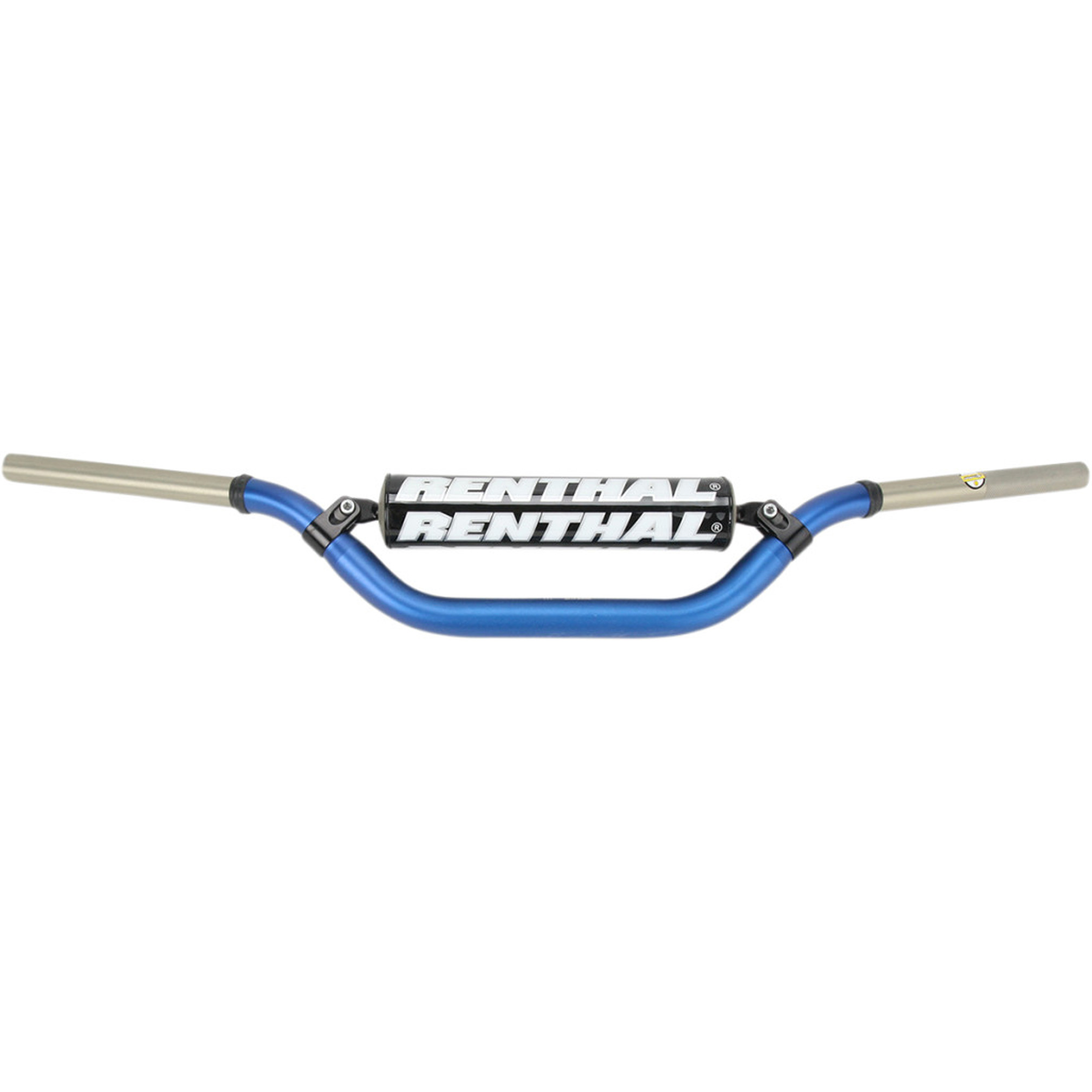

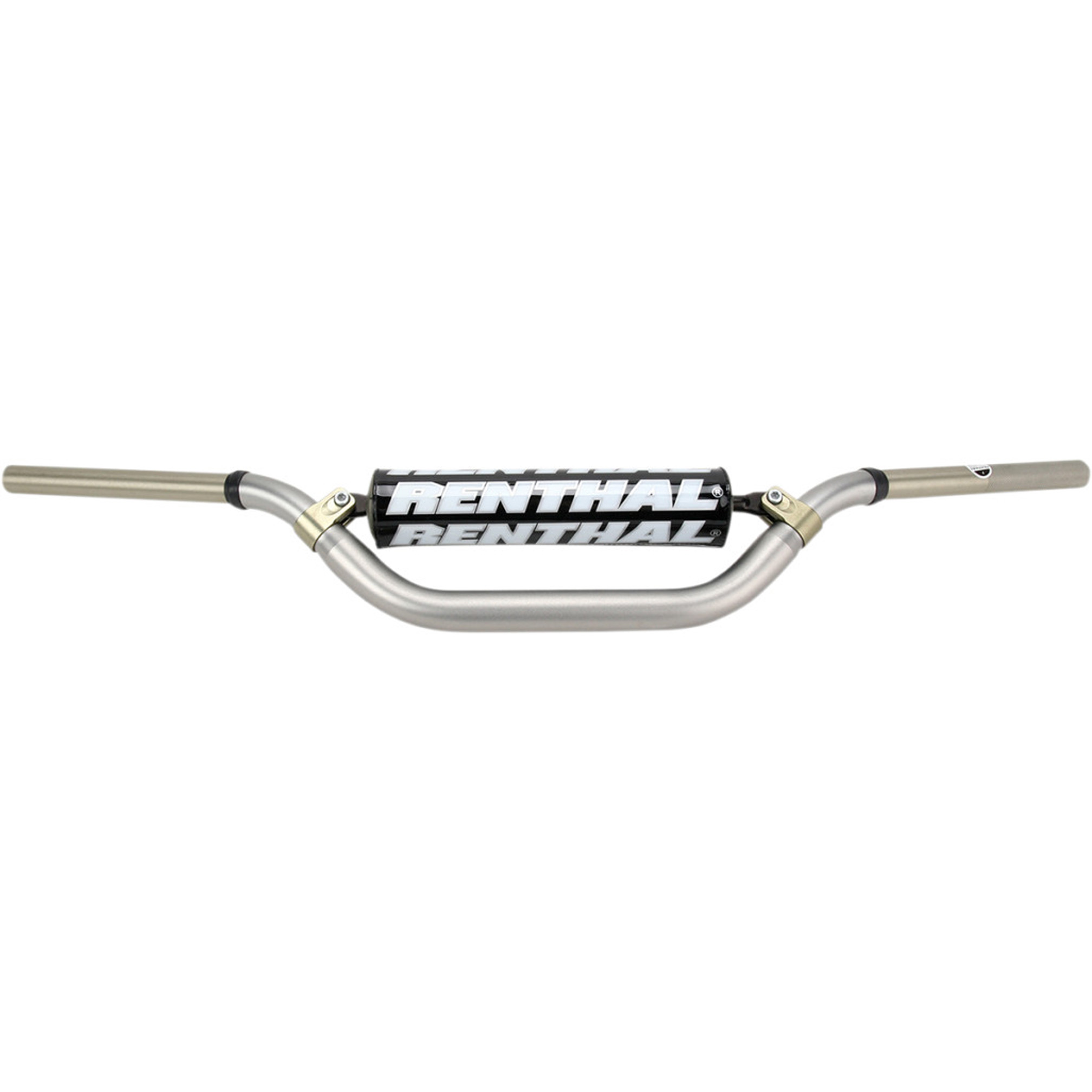

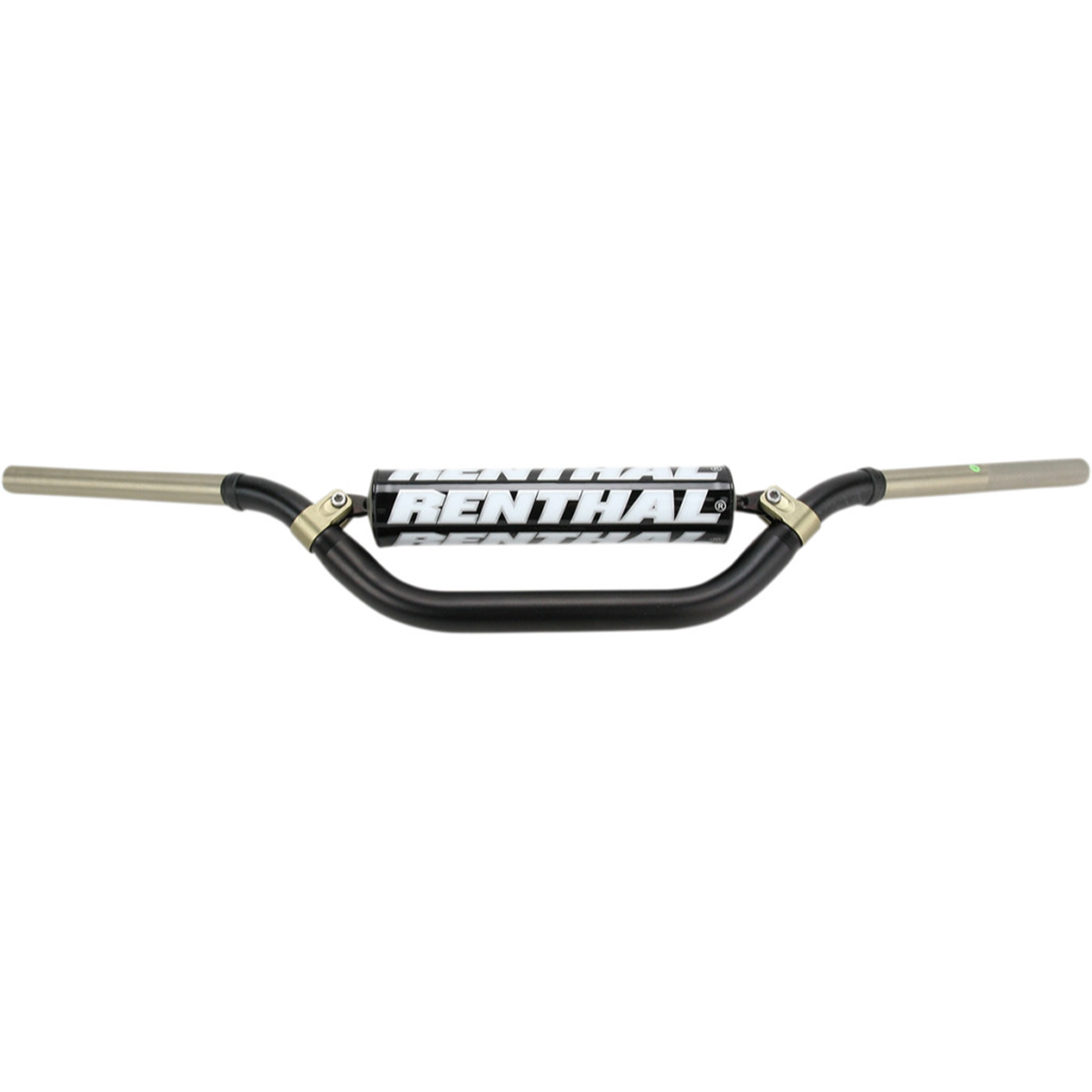

Renthal Twinwall Handlebars – RC High

• Twinwall® construction consists of two aluminum alloy tubes, one within the other
• Outer tube is 7010-T73, which has extreme resistance to mechanical damage and is anodized to prevent corrosion
• Inner tube is ultra high strength 7010-T6 aluminum and is hard anodized to resist wear from twist grip and controls
• Rubber seals are used to cover the ends of the outer tube to keep water and cleaning fluids out
• Laser marked in the middle for accurate positioning
• Each handlebar includes an updated injection molded foam bar pad for better protection and greater durability
• Requires model-specific 1-1/8″ bar mounts for bikes originally equipped with 7/8″ bars

BEND SPECS

• Width: 802mm
• Height: 119mm
• Rise: 80mm
• Base (Clamp area width): 200mm
• Sweep: 54mm
• Control Length: 187mm
