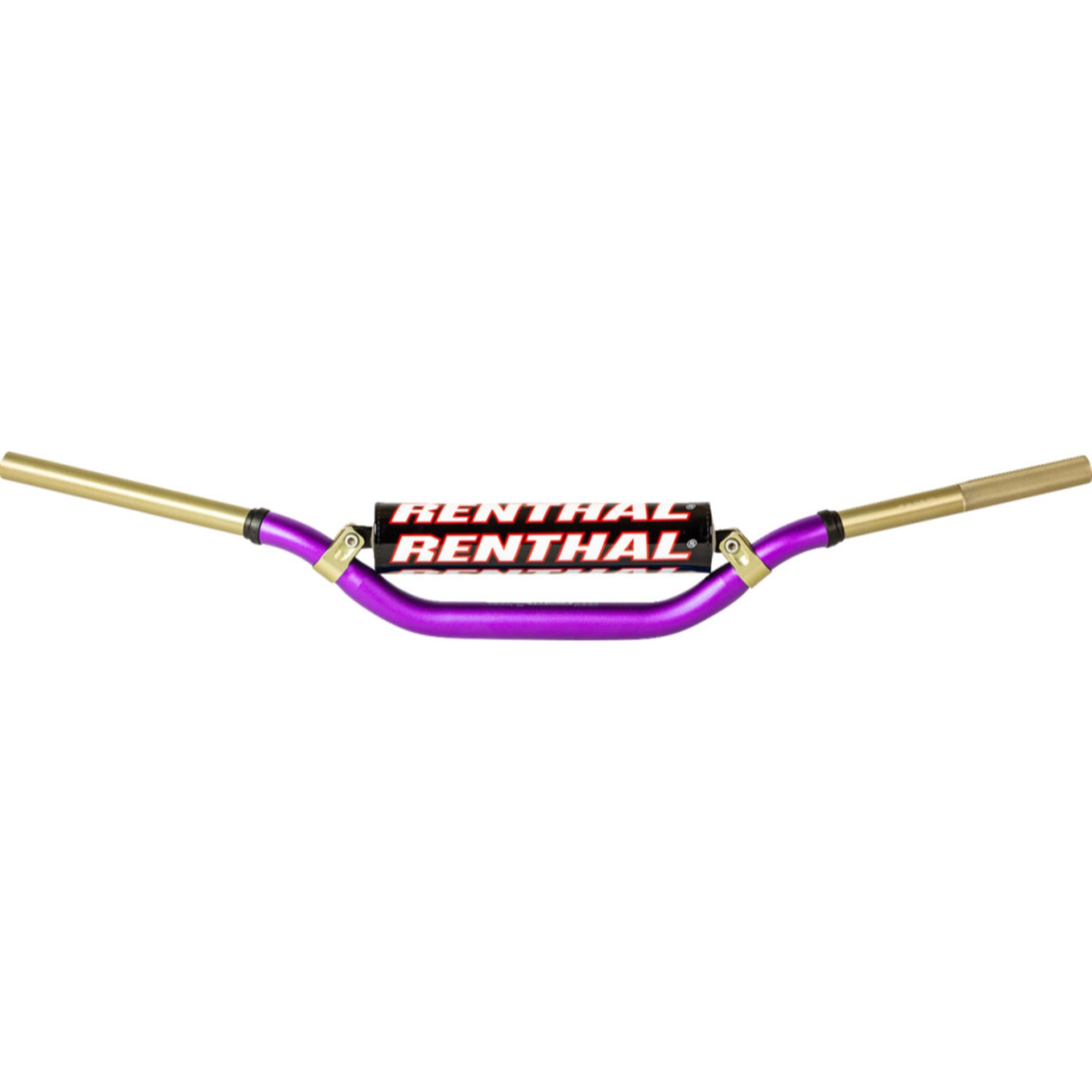

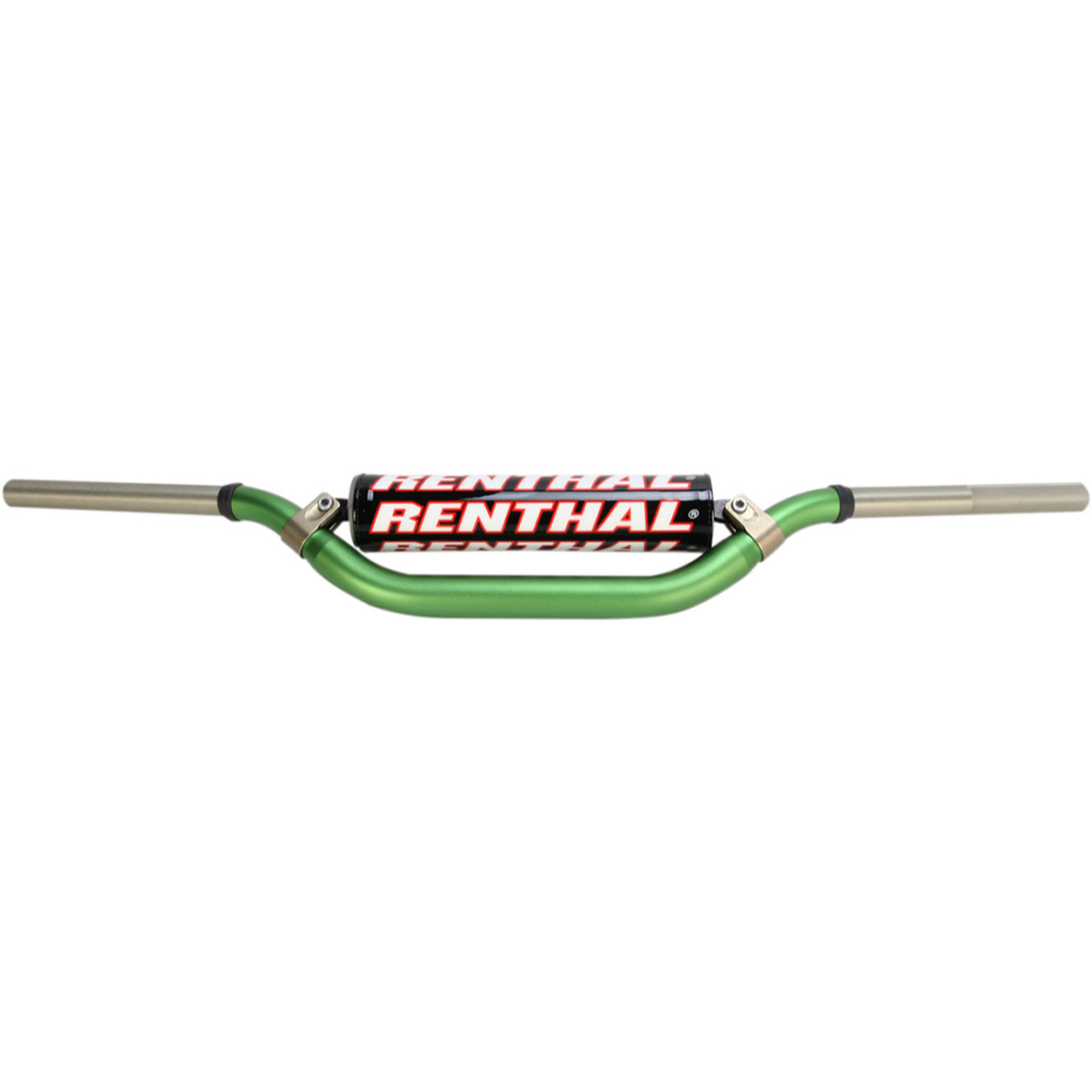

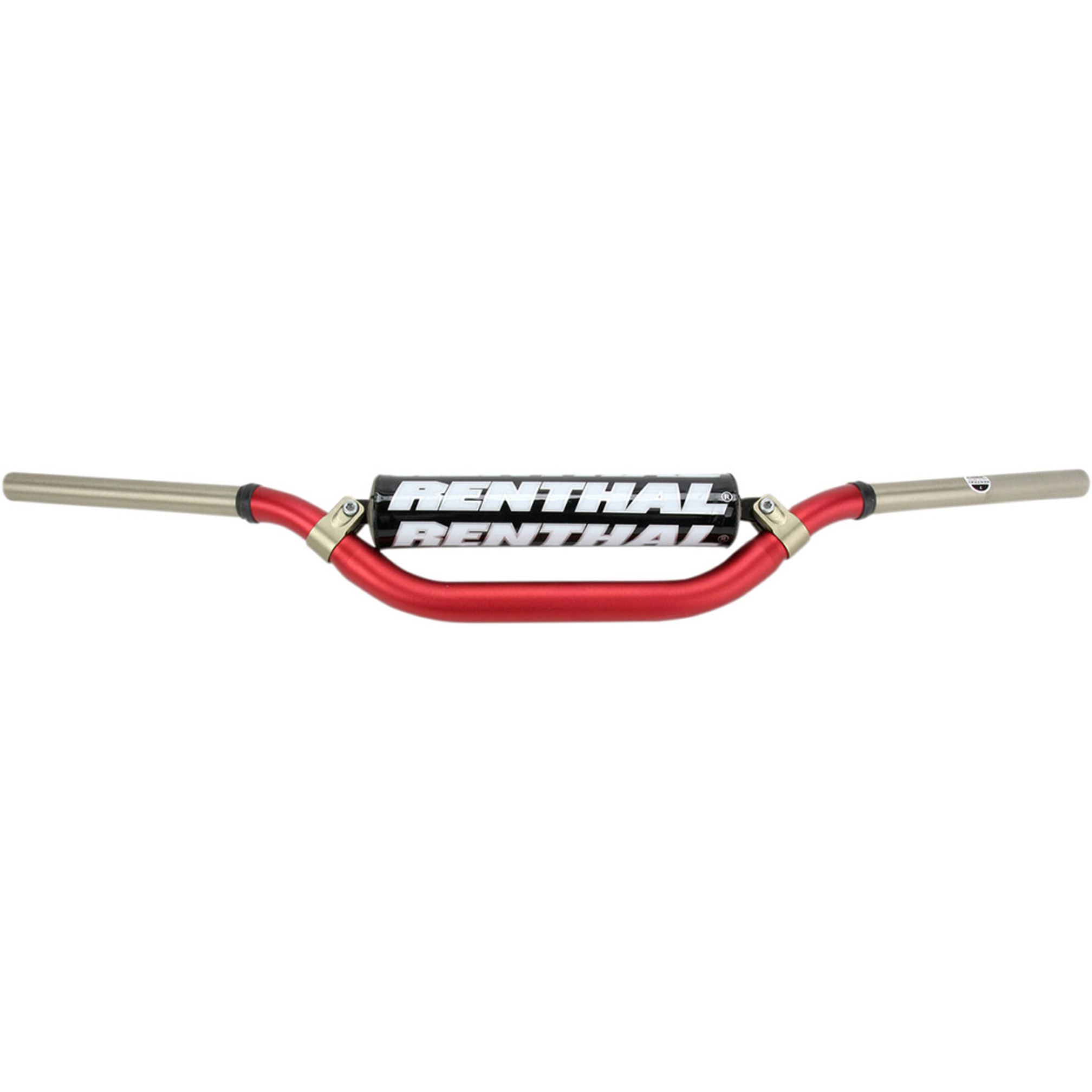

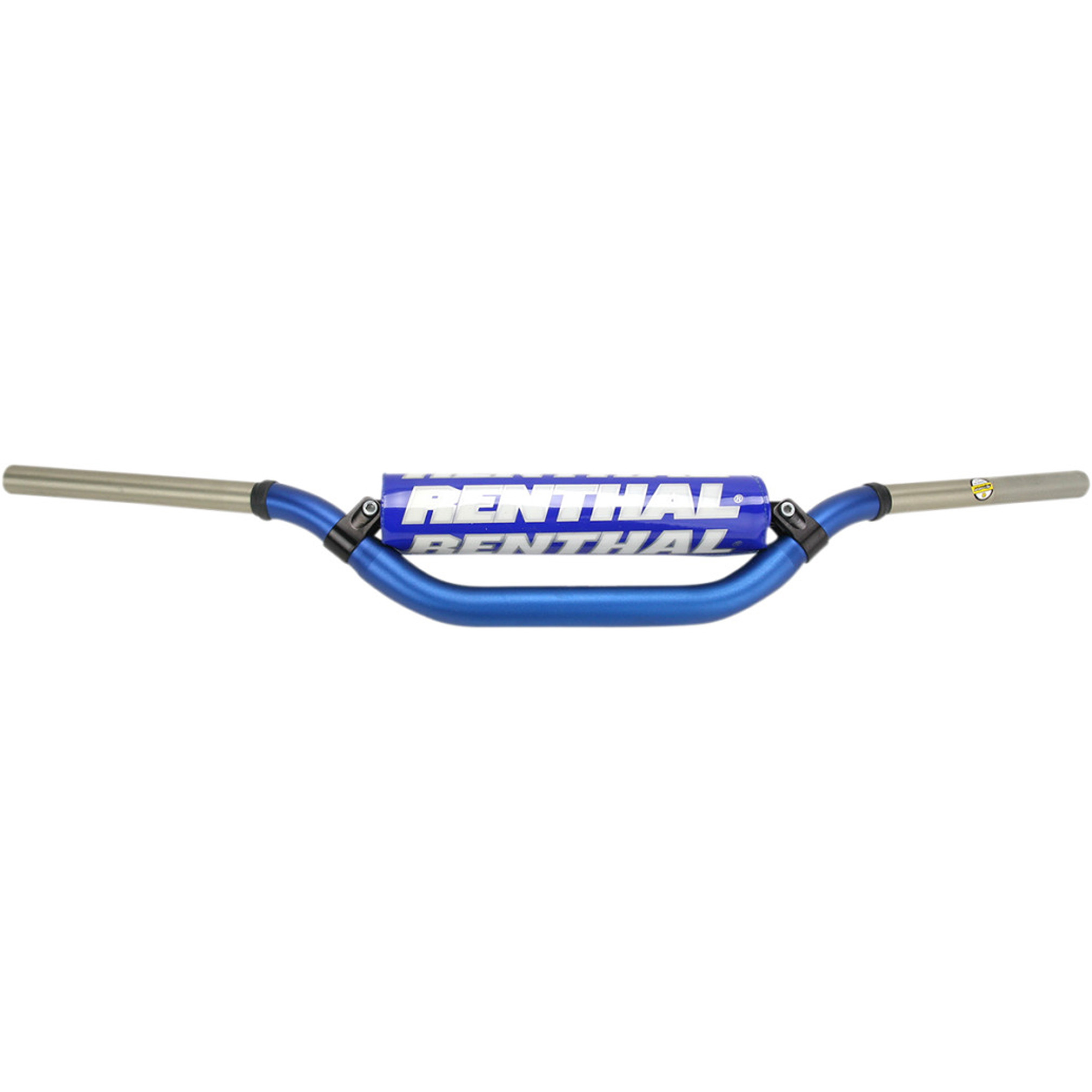

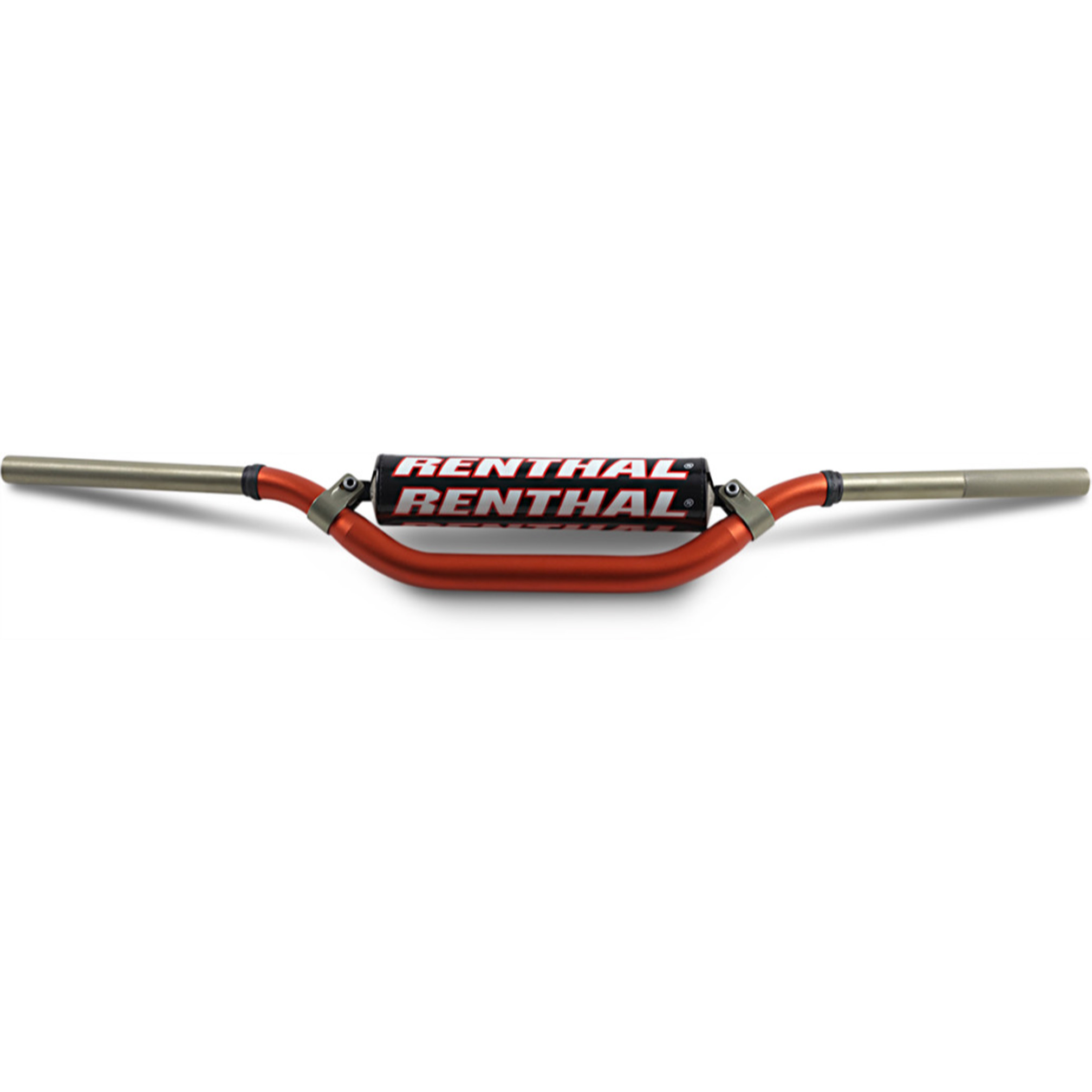

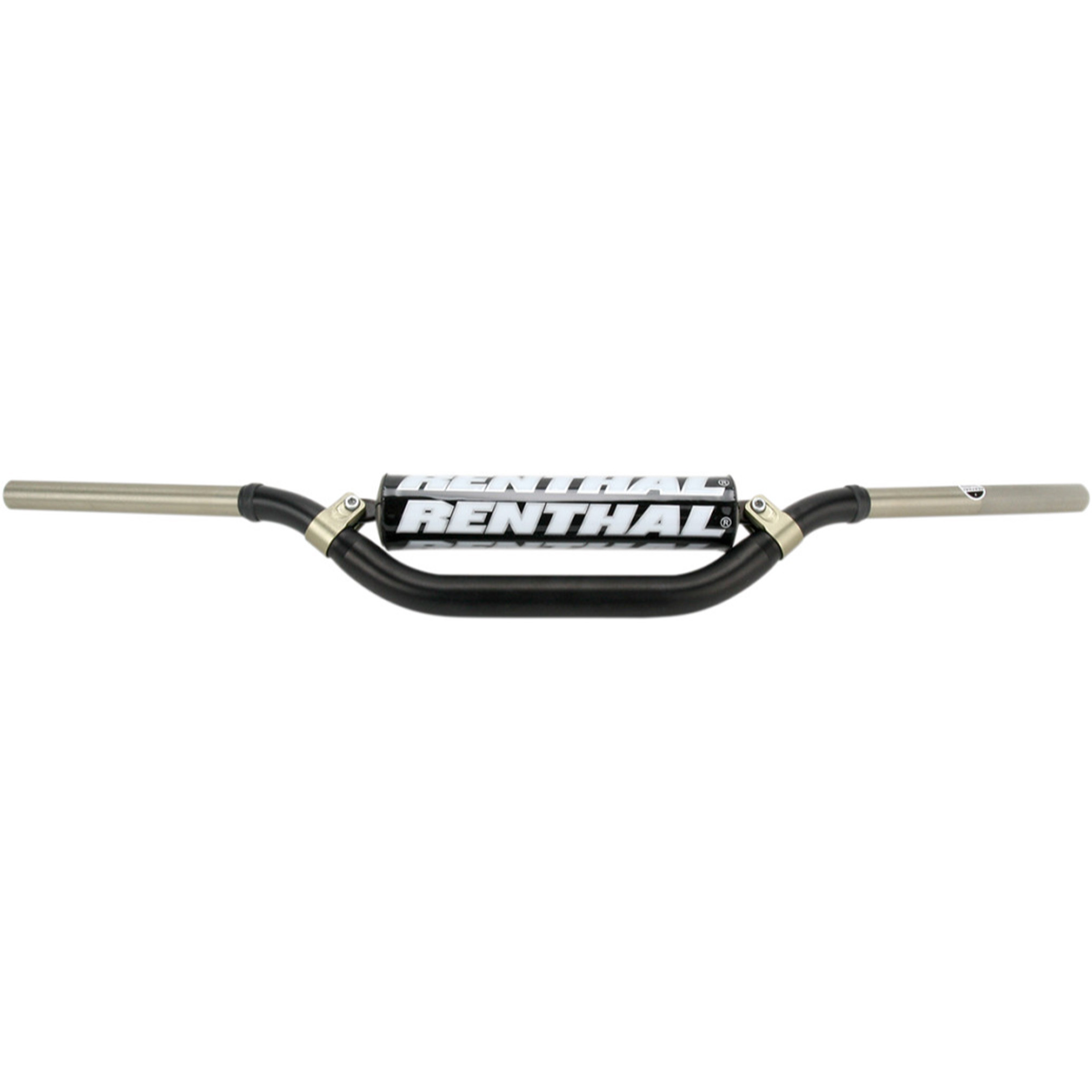

Renthal Twinwall Handlebars – Reed/Windham

• Twinwall® construction consists of two aluminum alloy tubes, one within the other
• Outer tube is 7010-T73, which has extreme resistance to mechanical damage and is anodized to prevent corrosion
• Inner tube is ultra high strength 7010-T6 aluminum and is hard anodized to resist wear from twist grip and controls
• Rubber seals are used to cover the ends of the outer tube to keep water and cleaning fluids out
• Laser marked in the middle for accurate positioning
• Each handlebar includes an updated injection molded foam bar pad for better protection and greater durability
• Requires model-specific 1-1/8″ bar mounts for bikes originally equipped with 7/8″ bars

BEND SPECS

• Width: 803mm
• Height: 92mm
• Rise: 56mm
• Base (Clamp area width): 210mm
• Sweep: 57mm
• Control Length: 200mm
