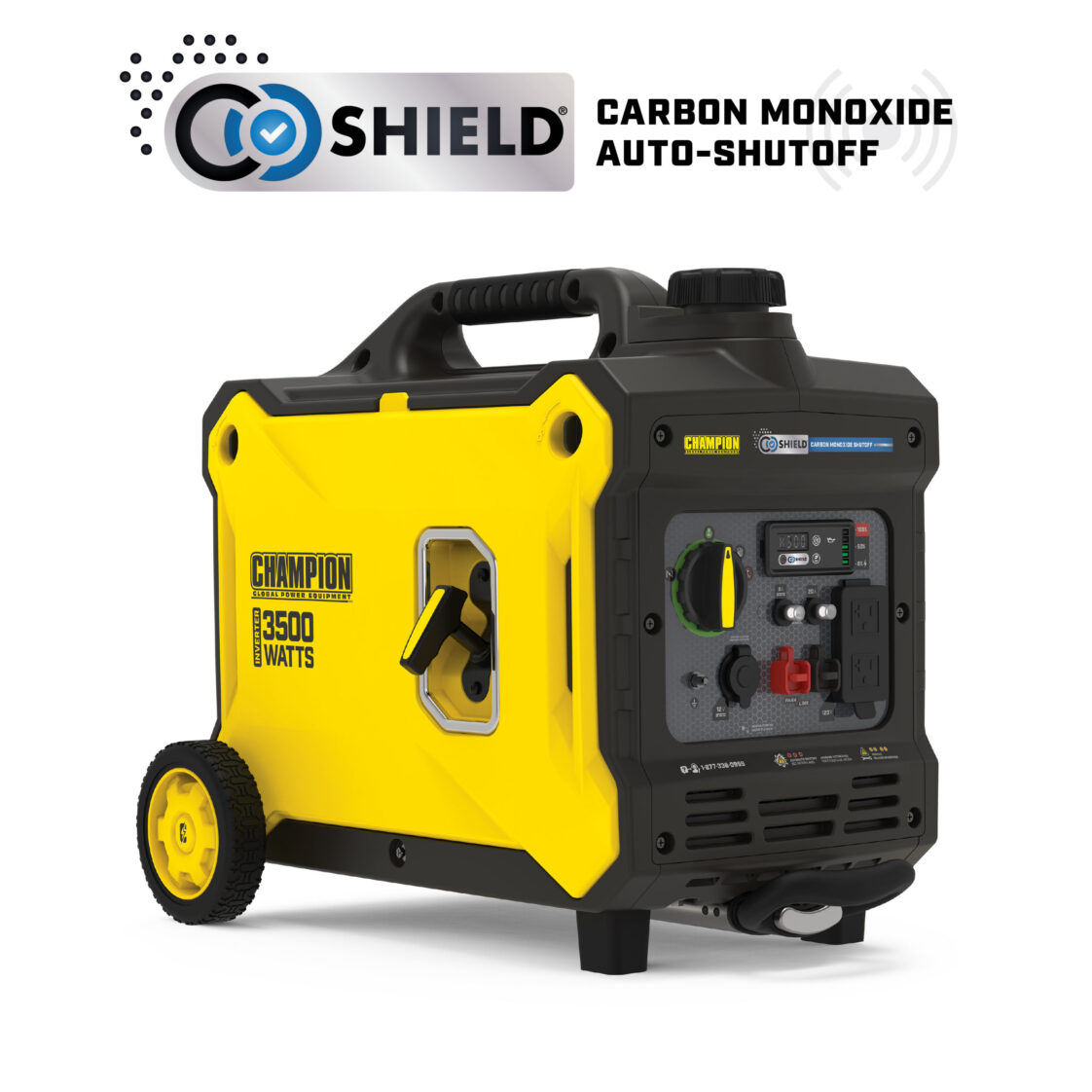

Champion’s 3500-watt inverter generator features CO Shield® carbon monoxide auto shutoff system. The advanced technology and design will improve the way you power your life. Our feature-packed power solution includes Quiet Technology, Economy Mode and Clean Power, plus you can easily increase your power with the optional Parallel Kit.
DESCRIPTION
The Champion Power Equipment 3500-Watt Inverter Generator with CO Shield® is ultra-quiet and ideal for camping, tailgating, powering items around the RV, or providing backup for your essentials.

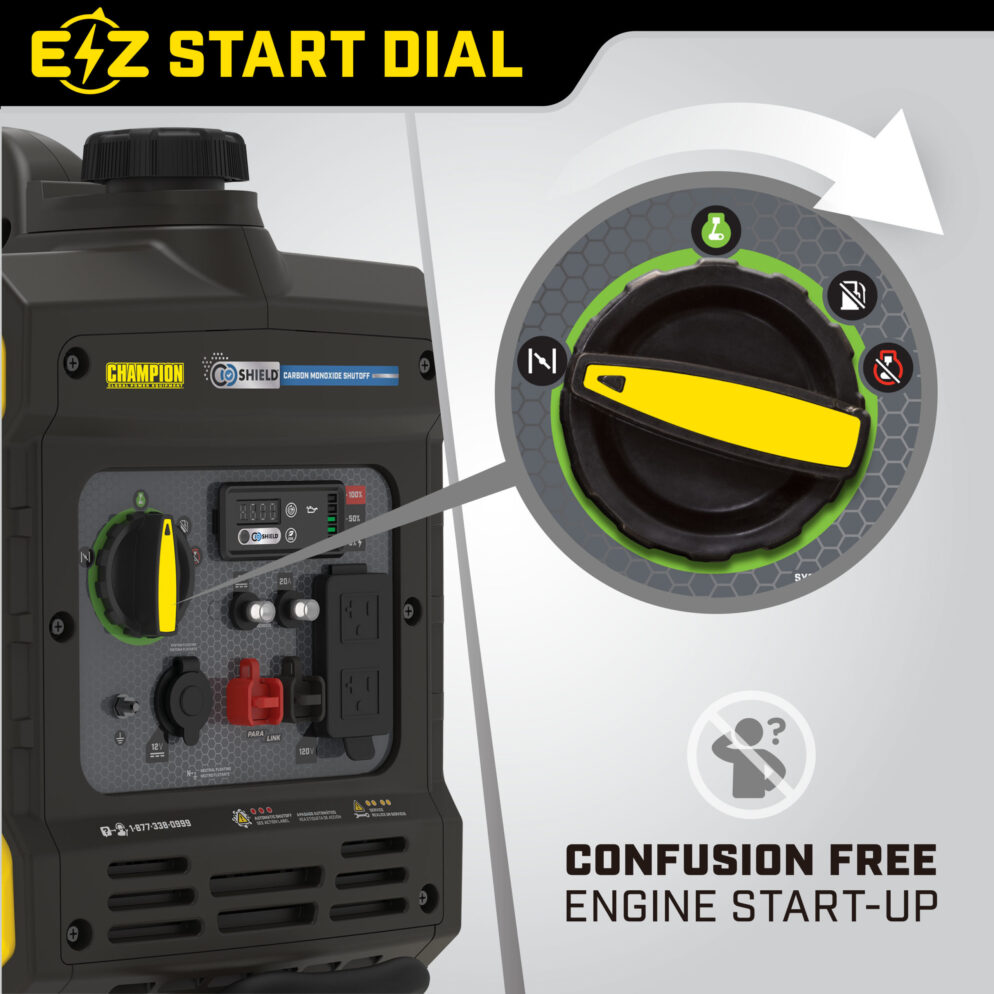

Champion’s EZ Start Dial makes getting started quick and easy. Featuring Cold Start Technology, the reliable 122cc Champion engine produces 3500 starting watts and 2300 running watts, and runs for 10 hours at 25% load when the 1.2-gallon fuel tank is full.
With a 0.4-quart oil capacity (included 10W-30) and a low oil shut-off sensor, this inverter operates at an ultra-quiet 58 dBA from 23 feet, which is about as loud as normal speech.
Refueling in the dark is a cinch thanks to the Fuel Fill Assist LED, plus the no tool access panel allows for easy maintenance.
Confidently connect your sensitive electronics since this inverter produces Clean Power (less than 3% THD).

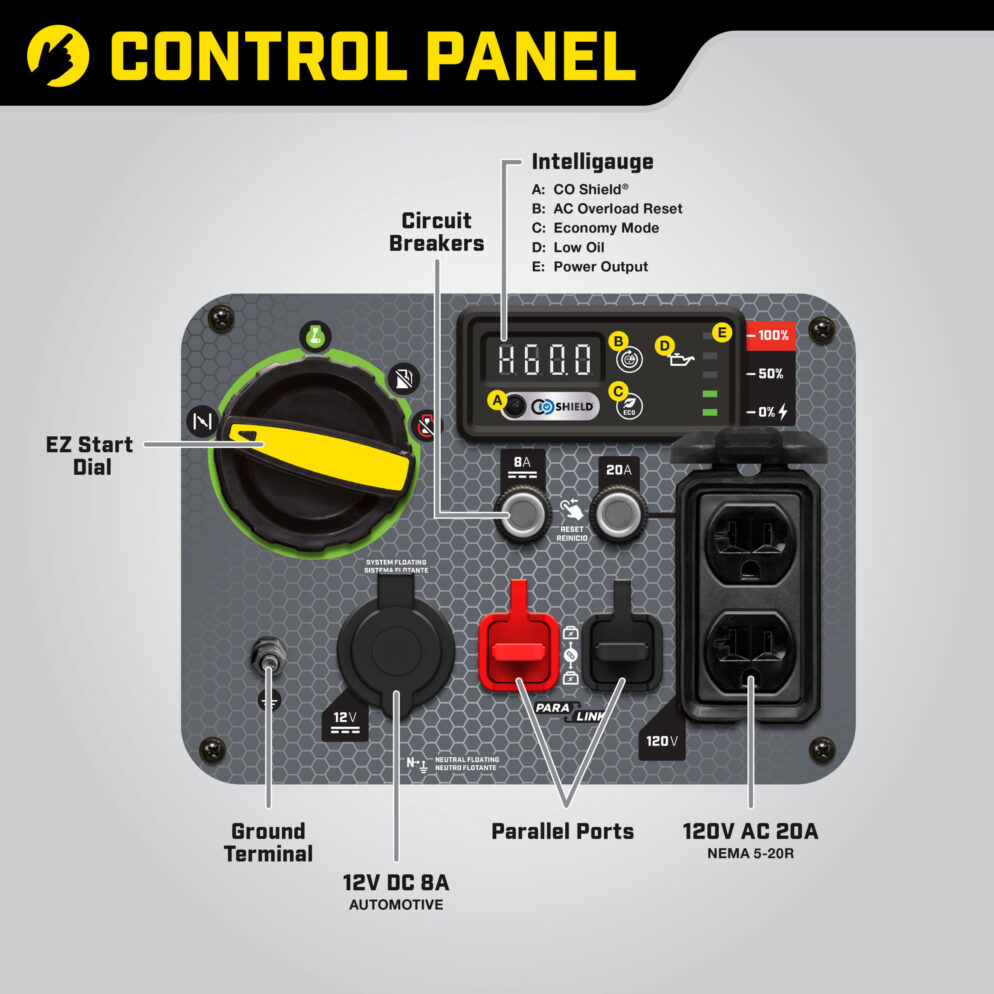

Our Quick Touch Panel offers fast access to all your controls. The Intelligauge with Power Meter monitors voltage, frequency and operating hours with ease, while Economy Mode monitors power consumption in real time to reduce engine wear and tear. As the electrical load is reduced, the inverter reduces engine speed, providing quieter operation, extended engine life and higher fuel economy.
The covered outlets included are a 120V 20A household duplex outlet (5-20R), a 12V automotive-style outlet, and a handy dual port USB adapter
The optional Parallel Kit (sold separately) allows you to increase output by connecting up to two 2800-watt or higher inverters. The never flat tires and telescoping handle make transport a cinch.
Buy this EPA certified inverter generator with confidence – Champion Support and our nationwide network of service centers will back up your purchase with a 3-year limited warranty and FREE lifetime technical support.

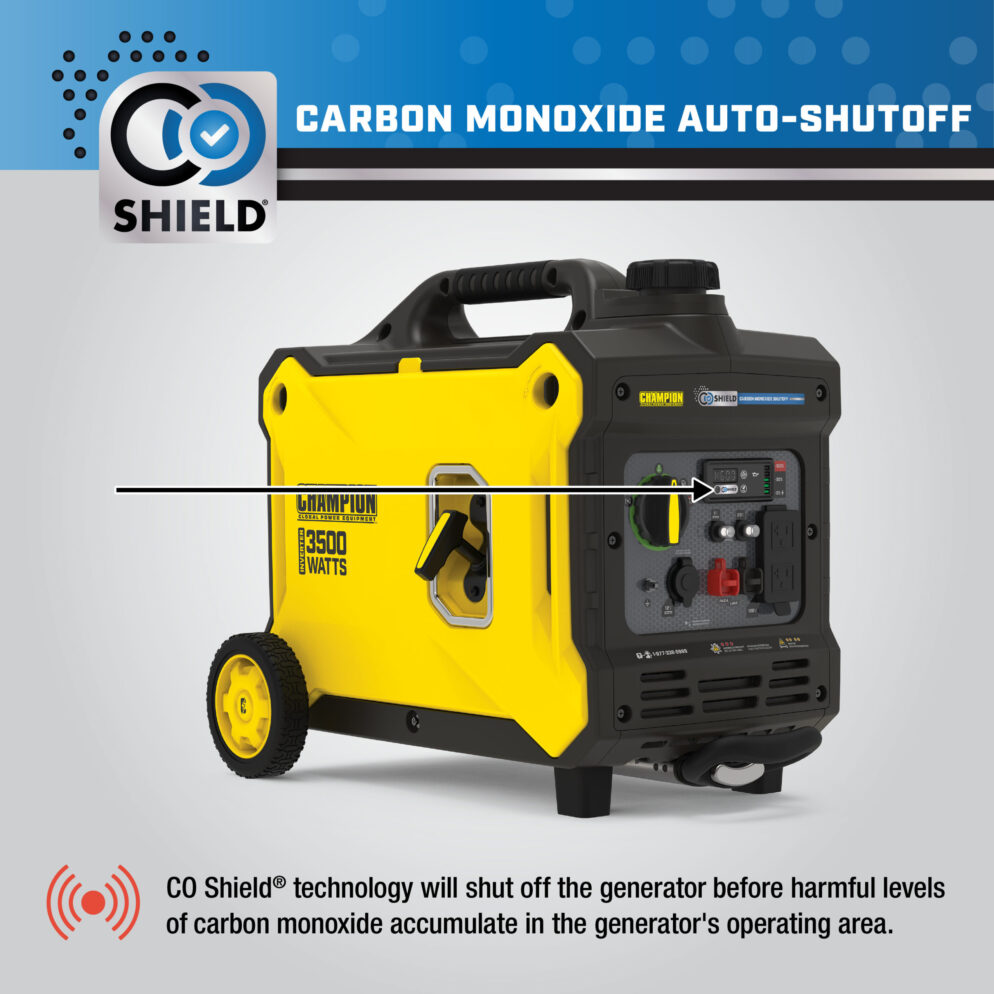

CO Shield® technology monitors the accumulation of carbon monoxide (CO), a poisonous gas produced by engine exhaust when the generator is running. If CO Shield® detects unsafe elevated levels of CO gas, it automatically shuts off the engine. CO Shield® is not a substitute for an indoor carbon monoxide alarm or for safe operation. DO NOT allow engine exhaust fumes to enter a confined area through windows, doors, vents or other openings. Generators must ALWAYS be used outdoors, far away from occupied buildings with engine exhaust pointed away from people and buildings. Meets the requirements of ANSI/PGMA G300-2018.

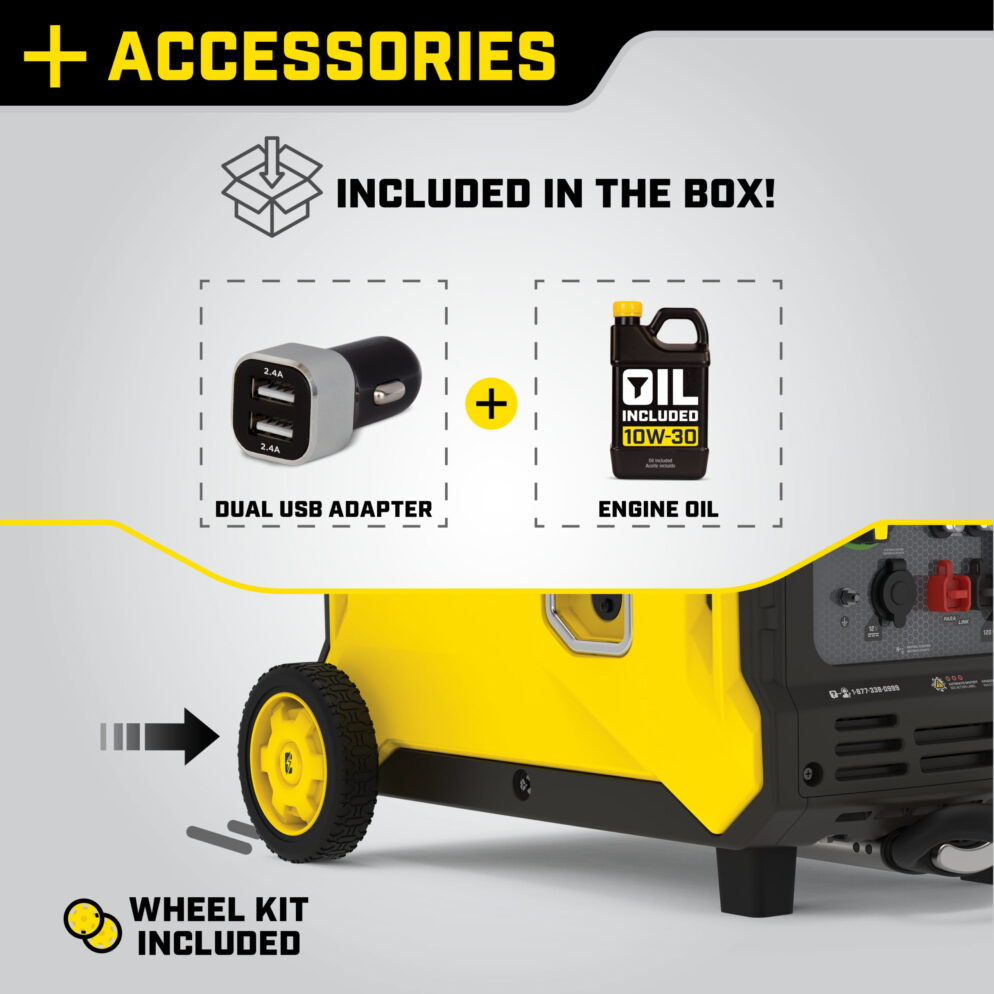

What’s included
- USB Adapter
- Wheel Kit
- Spark Plug Wrench
- Engine Oil
- Oil Funnel

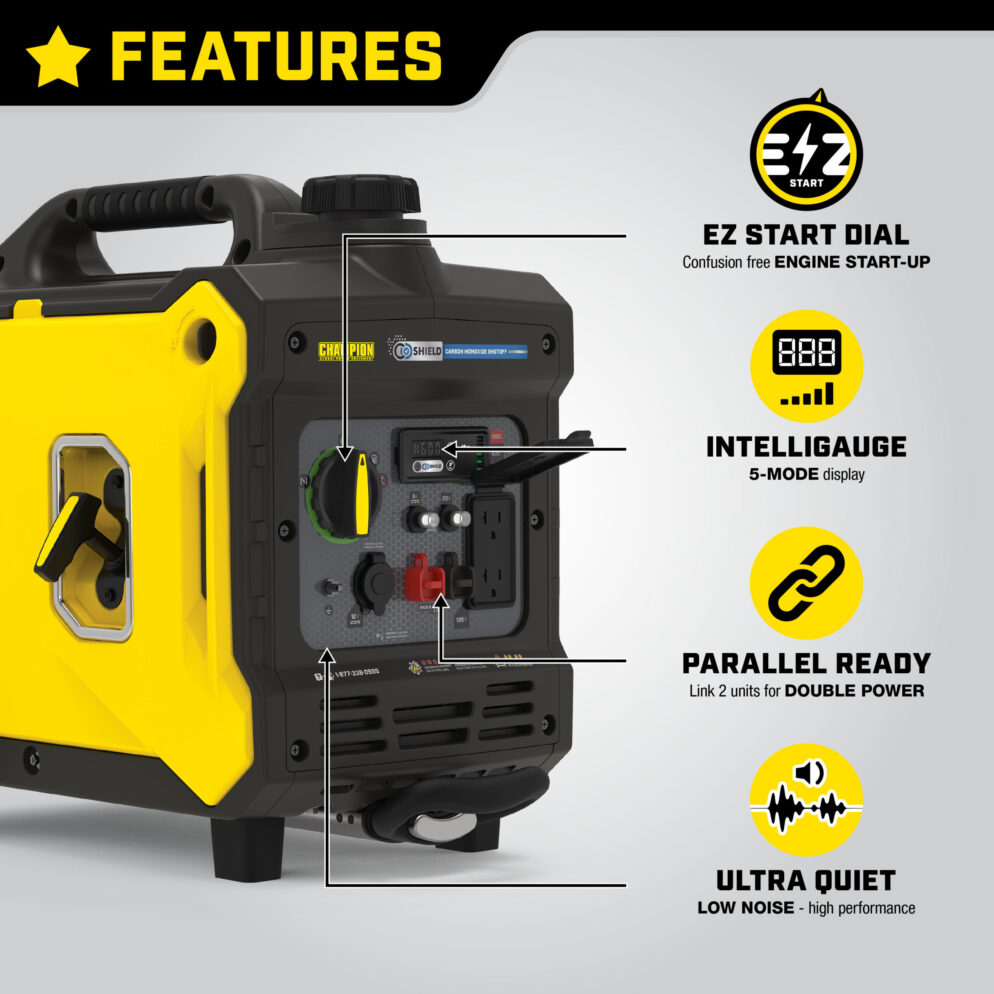

FEATURES
Quiet Technology and Extended Run Time
58 dBA is great for RVs, tailgating, or camping with 3500 starting watts and 2300 running watts and up to 10 hours run time on only 1.2 gallons of gasoline
Parallel Ready
The optional parallel kit (sold separately) enables this inverter to connect with another 2800-watt or higher Champion inverter to double your output power
Intelligauge
Monitor voltage, frequency and operating hours with ease, plus features CO Shield® carbon monoxide auto shutoff system, and the EZ Start Dial simplifies startup while Economy Mode monitors power consumption in real time
Clean Power for Sensitive Electronics
A 120V 20A household duplex outlet with clean power (less than 3% THD) and a 12V regulated automotive-style outlet
Champion Support edit
Includes 3-year limited warranty with FREE lifetime technical support from dedicated experts
SPECIFICATIONS
Portable Generator Technology | CO Shield® |
---|---|
Gasoline Starting Watts | 3500W |
Gasoline Running Watts | 2300W |
Gasoline Starting Amps at 120V | 29.2A |
Gasoline Running Amps at 120V | 19.2A |
Volts | 120 |
Frequency | 60Hz |
Outlets | 120V Duplex (5-20R), 12V DC Automotive, Parallel |
GFCI Outlets | No |
Covered Outlets | Yes |
Gasoline Run Time at 1/4 Load | 10 h. |
Noise Level | 58 dBA |
Inverter | Traditional |
Parallel Capability | Yes |
DC Operation | Yes |
Voltmeter | Intelligauge with Power Meter |
Automatic Voltage Regulation | No |
Battery | No |
Start Type | Recoil |
Engine Brand | Champion |
Engine Size | 122cc |
Engine Type | 4-stroke |
Engine Speed | Variable |
Fuel Type | Gasoline |
Fuel Gauge | Yes |
Gasoline Capacity | 1.2 gal. |
Gasoline Tank Material | Steel |
Engine Oil Type | 10W-30 |
Engine Oil Capacity | 0.4 qt. |
Engine Oil Included | Yes |
Low Oil Shut-Off | Yes |
Wheels | Yes |
Wheel Type | Solid |
Wheel Diameter | 5.5 in. |
PGMA G300-2018 Compliant | Yes |
EPA Certified | Yes |
DIMENSIONS
Length | 23.8 in. |
---|---|
Width | 16.4 in. |
Height | 19.4 in. |
Weight | 57.8 lb. |
